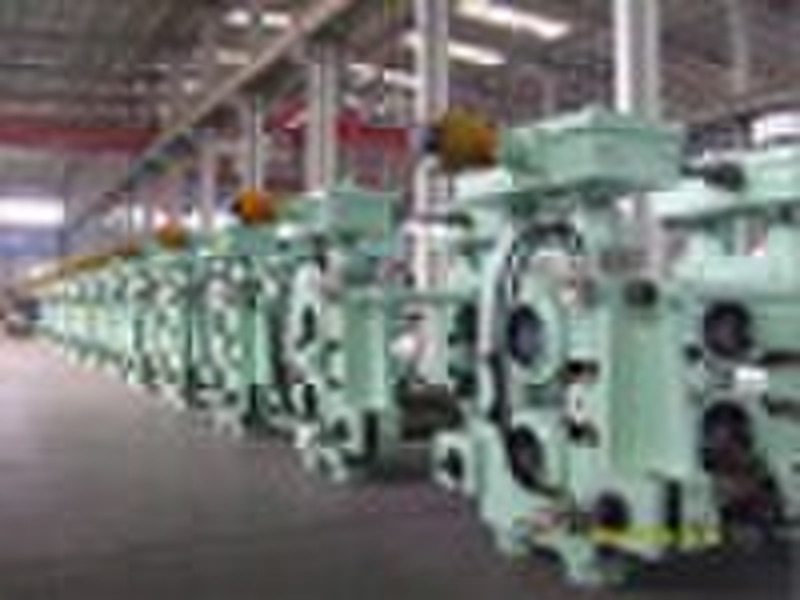

short-stress rolling mill

Φ450 H-rolling mill line Equipment Number: Location : **** Quantity: 1 set Mill Type: mill type Pomini ,non-short-stress wire mill Role: According to the technical requirements will be Rolling and Forming 2.1 Technical data: The size of roller φ480/φ420 × 700 mm The diameter of roller neck φ240 Unilateral maximum rolling force (kN.m) 2000 Axial the amount of adjustment (mm) ± 3 Radial the amount of adjustment (mm) 80 Mill pressing speed (mm / s) 0.5 Rack traverse stroke (mm) ± 285 Traverse speed (mm / s) 50 The type of Rolling-sliding device : Hydraulic Cylinder Piston hydraulic cylinder: Hydraulic cylinder diameter (piston / rod): f 160 / f 100mm Hydraulic cylinder stroke: 535mm Hydraulic cylinder working speed: 5mm / s, 30mm / s Hydraulic cylinder working pressure: 16MPa Hydraulic cylinder Quantity: 1 Main Motor Type: Z500-2B Ratio: in accordance with user requirements 2.2 Structural characteristics: Roller Bearings (China): 4-row cylindrical bearings Thrust Bearing Roll balance: balancing dampers Radial roller adjustment: hydraulic motor automatic and manual adjustment roller symmetrical seam, Rack sliding: The rolling-line Fixed-driven hydraulic cylinder. Cardan shaft with drum gear coupling Electrical coupling used drum gear coupling
