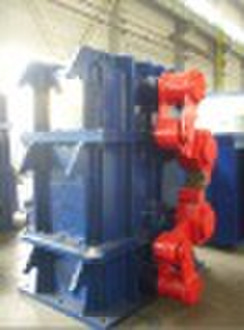

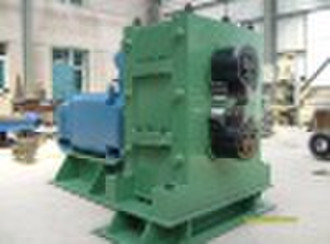

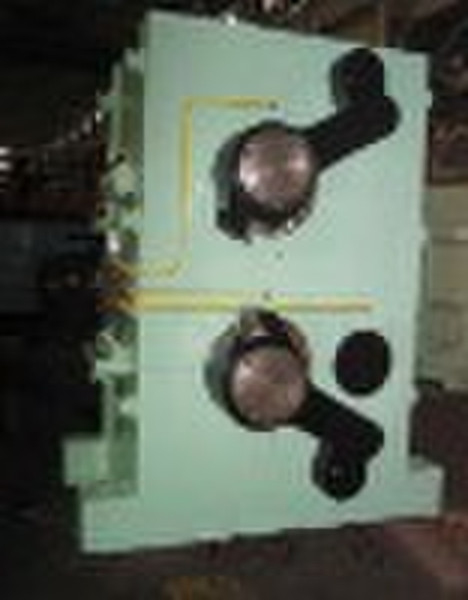

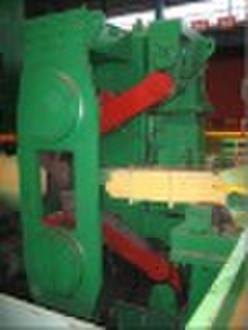

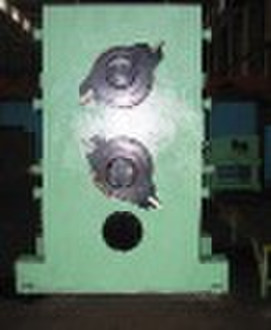

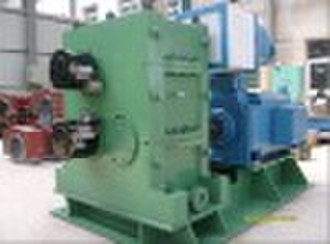

Flying shear

Uses: head-cut and tail-cut , and chopped pieces in accident Location: be Installed between the second mill and finishing mill Technical Data: Rolling section: 2250 mm2 Shear temperature: ≥ 850 Shear rate: 2.4-9.2 m / s Shear steel: carbon steel, excellent carbon steel, low alloy steel Work systems : start - stop working system, continuous work system of chopped pieces in accident , Turning radius: 350 mm Broken-off length: ≤ 1200 mm Cutting head length: ≤ 300 Effective width of cutting blade: 250 mmOverlap volume of cutting blade: 1 mm Side clearance of cutting blade: 0.1-0.2 mm Cutting Blade Material: 6CrW2Si Speedratio: 112 Motor Type: DMA355LPower: 355 kw Rated speed: 670 r/min
